Instant Port Profile Example Workflow

This is an example workflow using the Instant Port Profile feature.

To create a new Instant Port Profile:

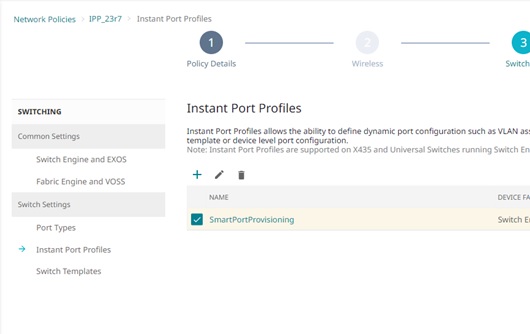

Navigate to Network Policy > Policy > Switching > Switch Settings > Instant Port Profiles.

Instant Port Profiles Switch Template

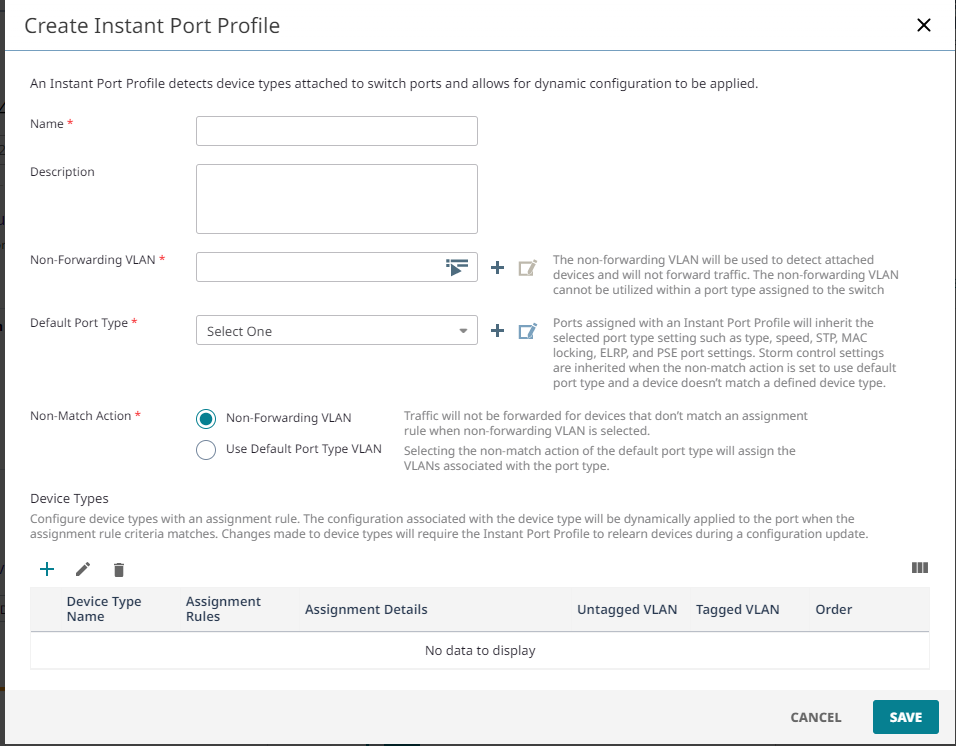

Enter the information for the Non-Forwarding VLAN, Default Port Type, and Non-Match Action. See Instant Port Profile Switch Template Configuration for more information about configuring IPP.

Instant Port Profiles Creation
Create, edit, or delete device types.

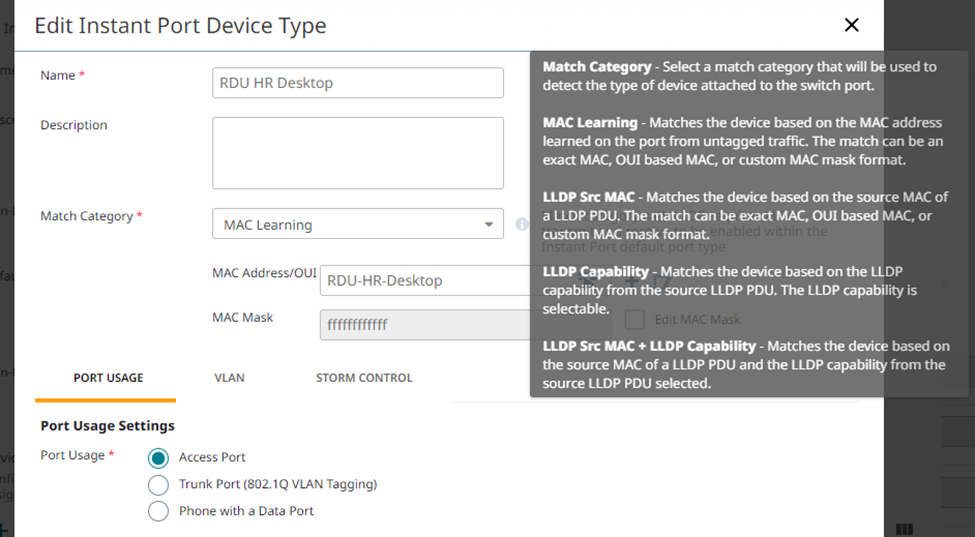

Define device types and their respective match criteria such as MAC learning, LLDP Source MAC, LLDP Capability, or a combination. For a device type to match based on MAC learning, the rule must be ordered above any LLDP-based assignment rules. This ensures that MAC learning takes precedence, irrespective of LLDP information.
Configure port usage, VLAN, and storm control settings under match criteria for the device type.
The options for port usage are:
- Access Port
- Trunk Port (802.1Q VLAN Tagging)
- Phone with a Data Port
Within the VLAN Settings section, untagged VLANs are assigned based on MAC addresses using MAC-based VLANs determined by the selected match category. The system identifies the client MAC addresses for this purpose. However, for traffic with tagged VLANs, no learning or device type matches are conducted.

Note
The latest device type match on a port for storm control settings will override existing storm control values.

Instant Port Profiles Port Device Type
Assign Instant Port profiles to switches within switch templates. Select Template > Port Configuration. Under Configure Port Individually select the existing IPP from the menu.

Instant Port Profiles Wired Devices

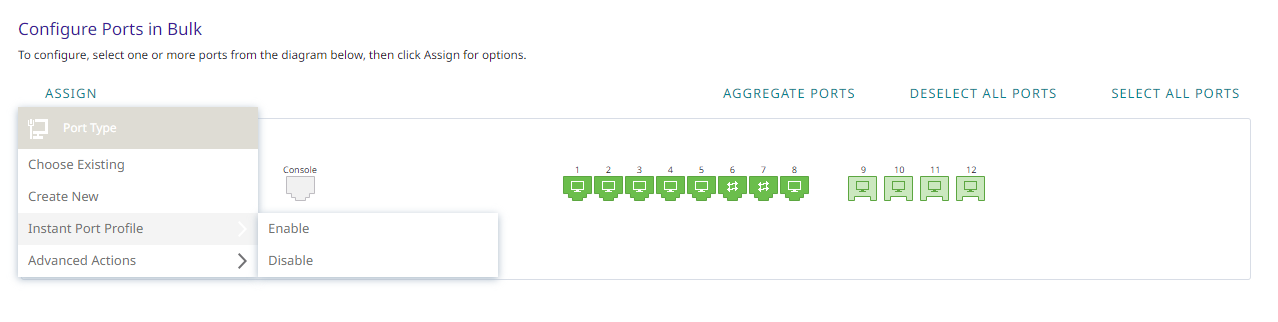

For device level management of IPP: Select the desired port(s) by selecting Assign, select Instant Port Profile > Enable or Disable. To override Instant Port Profile settings at the device level:
1. Navigate to Manage > Devices > Configure > Port Configuration.
2. Override IPP assignments and the ability to enable or disable ports as required.
Select Save to apply IPP to the switch template.

For the following example, the below device types are configured using Instant Port Profiles assigned to a switch template.

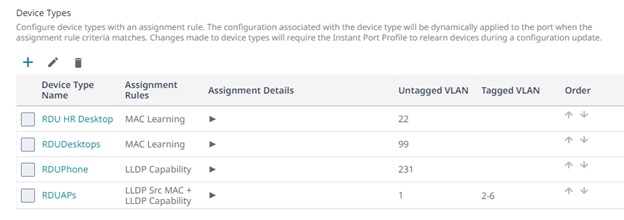

Wired Device Types
